- The Rotax Evolution Concept
-
» EVOLUTION

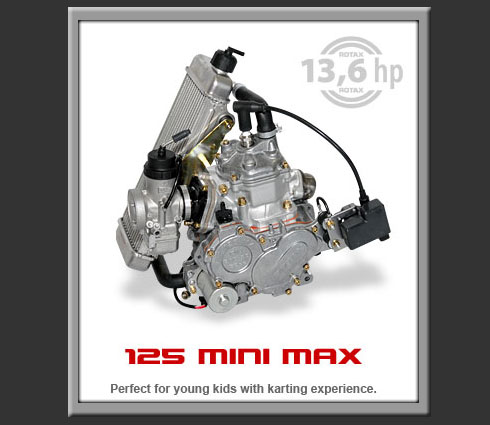

By upgrading various accessories and components a 125 Micro MAX engine configuration can be easily converted to a 125 MAX configuration.
» CHOICE
The product range consists of the traditional chain drive engines (125 Micro MAX to 125 MAX) without gearbox and the innovative top class, chainless - direct drive engine (125 MAX DD2) with 2 speed gearbox.
» SETTING
The engines are developed and designed specifically for short kart race tracks (600 - 1.500 meter length).
» PACKAGE
All BRP-Rotax kart engines are offered as a complete „power pack“ which includes all components that have an influence on the function, performance or durability of the engine.
| Age | 10-13 years | |
| Race class | Mainly National | |
| Max Performance | 10 kW / 13,6 hp at 8.500 rpm | |
| Maximum torque | 12 Nm at 7.500 rpm | |
| Weight bare engine | 11,8 kg / 26,O Ibs 5 - with complete power pack:23,6 kg / 52,O Ibs | |
| Special features | Junior cylinder without exhaust valve, restrictors in intake manifoldand exhaust socket | |
| Power Pack | Silencer, carburetor, fuel pump, engine, exhaust system, radiator, battery, battery box, cable harness, start button, ON/OFF switch |
|
| Chassis compatibility | Wheel base from 900 mm to 1.050 mm | |
